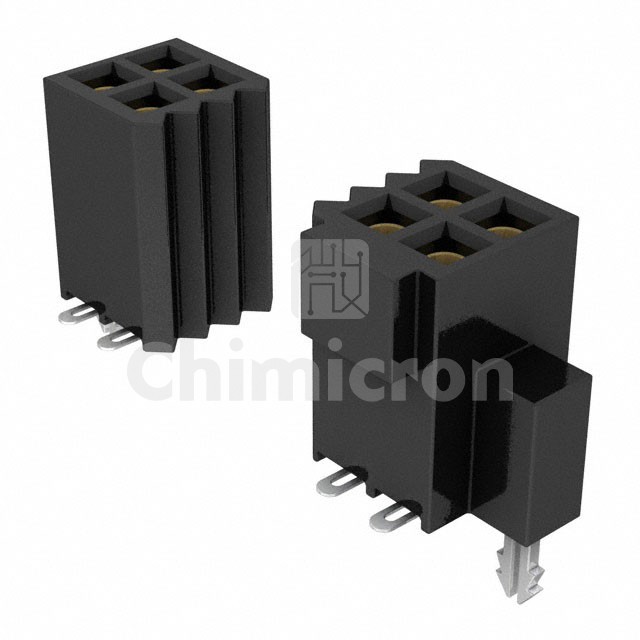

SFM-120-02-S-D-LC
Manufacturer: Samtec, Inc.
Description: CONN RCPT 40POS 0.05 GOLD SMD
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: Tiger Eye™ SFM
In Stock:10000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the SFM-120-02-S-D-LC Samtec, Inc. at chimicron.com. We have 10000 pieces of SFM-120-02-S-D-LC in stock available now. Submit an inquiry for SFM-120-02-S-D-LC or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesTiger Eye™ SFM
PackageTube
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions40
Number of Positions LoadedAll
Pitch - Mating0.050" (1.27mm)
Number of Rows2
Row Spacing - Mating0.050" (1.27mm)
Mounting TypeSurface Mount
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating30.0µin (0.76µm)
Insulation ColorBlack
Insulation Height0.185" (4.70mm)
Contact Length - Post-
Operating Temperature-55°C ~ 125°C
Material Flammability RatingUL94 V-0
Contact Finish - PostTin
Mated Stacking Heights6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Ingress Protection-
FeaturesBoard Lock
Current Rating (Amps)3.2A per Contact
Voltage Rating250VAC
