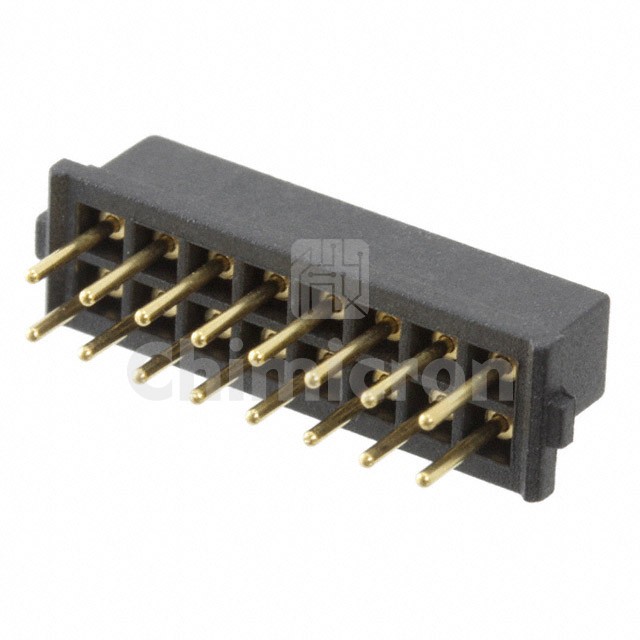

M80-8501645
Manufacturer: Harwin
Description: CONN RCPT 16POS 0.079 GOLD PCB
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: Datamate L-Tek
In Stock:49
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the M80-8501645 Harwin at chimicron.com. We have 49 pieces of M80-8501645 in stock available now. Submit an inquiry for M80-8501645 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesDatamate L-Tek
PackageTube
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions16
Number of Positions LoadedAll
Pitch - Mating0.079" (2.00mm)
Number of Rows2
Row Spacing - Mating0.079" (2.00mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening TypeLocking Ramp
Contact Finish - MatingGold
Contact Finish Thickness - Mating12.0µin (0.30µm)
Insulation ColorBlack
Insulation Height0.202" (5.14mm)
Contact Length - Post0.118" (3.00mm)
Operating Temperature-55°C ~ 125°C
Material Flammability RatingUL94 V-0
Contact Finish - PostGold
Mated Stacking Heights7.23mm, 7.85mm
Ingress Protection-
Features-
Current Rating (Amps)-
Voltage Rating800V
