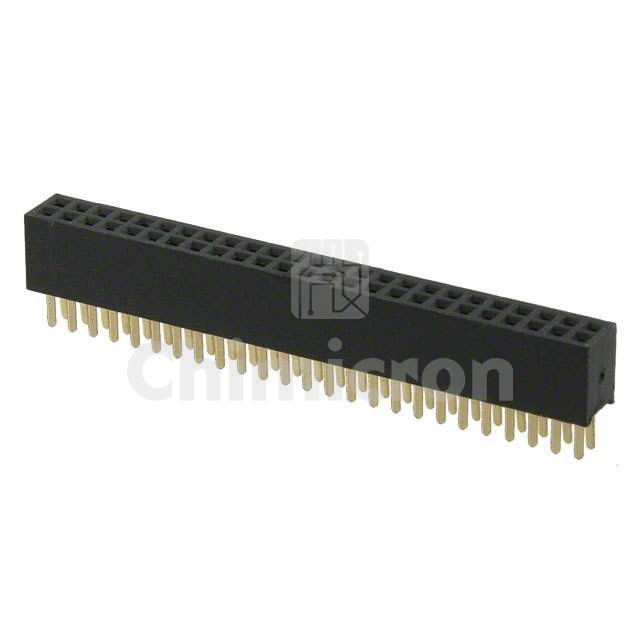

M50-3002545
Manufacturer: Harwin
Description: CONN RCPT 50POS 0.05 GOLD PCB
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: Archer M50
In Stock:3000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the M50-3002545 Harwin at chimicron.com. We have 3000 pieces of M50-3002545 in stock available now. Submit an inquiry for M50-3002545 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesArcher M50
PackageTube
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions50
Number of Positions LoadedAll
Pitch - Mating0.050" (1.27mm)
Number of Rows2
Row Spacing - Mating0.050" (1.27mm)
Mounting TypeThrough Hole
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - MatingFlash
Insulation ColorBlack
Insulation Height0.173" (4.40mm)
Contact Length - Post0.094" (2.40mm)
Operating Temperature-40°C ~ 105°C
Material Flammability RatingUL94 V-0
Contact Finish - Post-
Mated Stacking Heights5.4mm, 6.08mm, 9.37mm
Ingress Protection-
Features-
Current Rating (Amps)1A
Voltage Rating-
