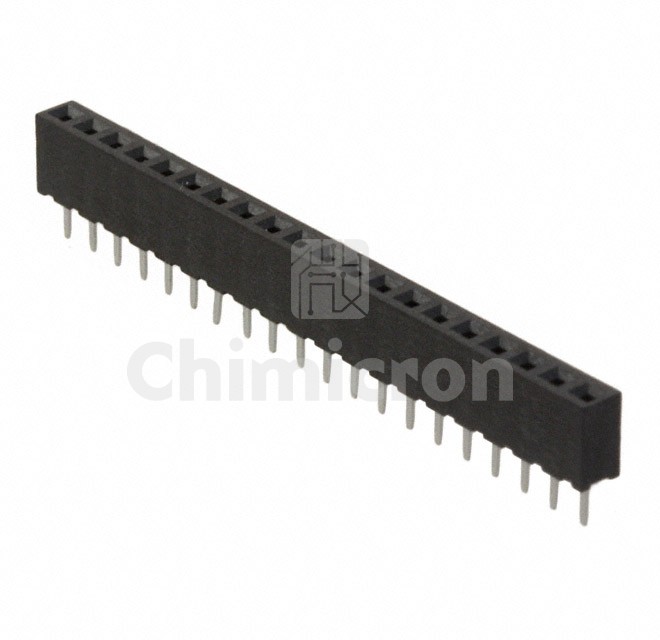

M22-7132042
Manufacturer: Harwin
Description: CONN RCPT 20POS 0.079 GOLD PCB
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: M22
In Stock:2332
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the M22-7132042 Harwin at chimicron.com. We have 2332 pieces of M22-7132042 in stock available now. Submit an inquiry for M22-7132042 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesM22
PackageTube
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions20
Number of Positions LoadedAll
Pitch - Mating0.079" (2.00mm)
Number of Rows1
Row Spacing - Mating-
Mounting TypeThrough Hole
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - Mating-
Insulation ColorBlack
Insulation Height0.173" (4.40mm)
Contact Length - Post0.094" (2.40mm)
Operating Temperature-40°C ~ 105°C
Material Flammability RatingUL94 V-0
Contact Finish - PostTin
Mated Stacking Heights5.9mm
Ingress Protection-
Features-
Current Rating (Amps)2A
Voltage Rating500VAC
