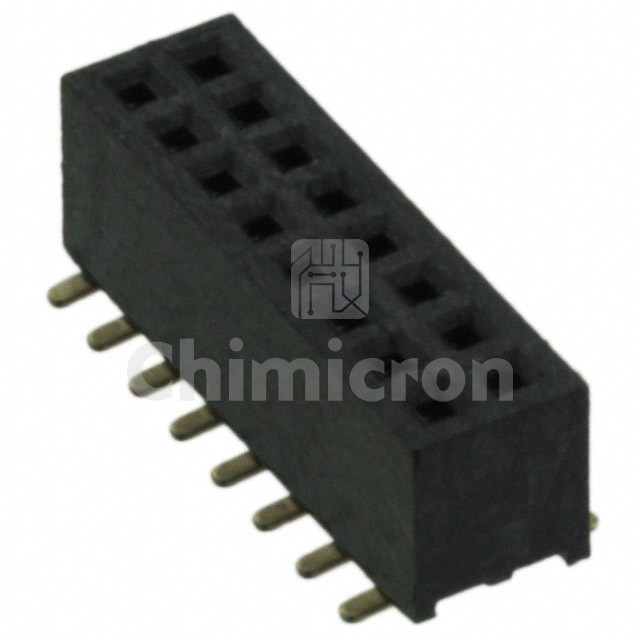

M50-3120845
Manufacturer: Harwin
Description: CONN RCPT 16POS 0.05 GOLD SMD
Category : Connectors, Interconnects
Family: Rectangular Connectors - Headers, Receptacles, Female Sockets
Series: Archer M50
In Stock:2000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the M50-3120845 Harwin at chimicron.com. We have 2000 pieces of M50-3120845 in stock available now. Submit an inquiry for M50-3120845 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesArcher M50
PackageTube
Part StatusActive
Connector TypeReceptacle
Contact TypeFemale Socket
StyleBoard to Board or Cable
Number of Positions16
Number of Positions LoadedAll
Pitch - Mating0.050" (1.27mm)
Number of Rows2
Row Spacing - Mating0.050" (1.27mm)
Mounting TypeSurface Mount
TerminationSolder
Fastening TypePush-Pull
Contact Finish - MatingGold
Contact Finish Thickness - MatingFlash
Insulation ColorBlack
Insulation Height0.142" (3.60mm)
Contact Length - Post-
Operating Temperature-40°C ~ 105°C
Material Flammability RatingUL94 V-0
Contact Finish - PostGold
Mated Stacking Heights5.5mm, 6.18mm
Ingress Protection-
Features-
Current Rating (Amps)1A
Voltage Rating-
