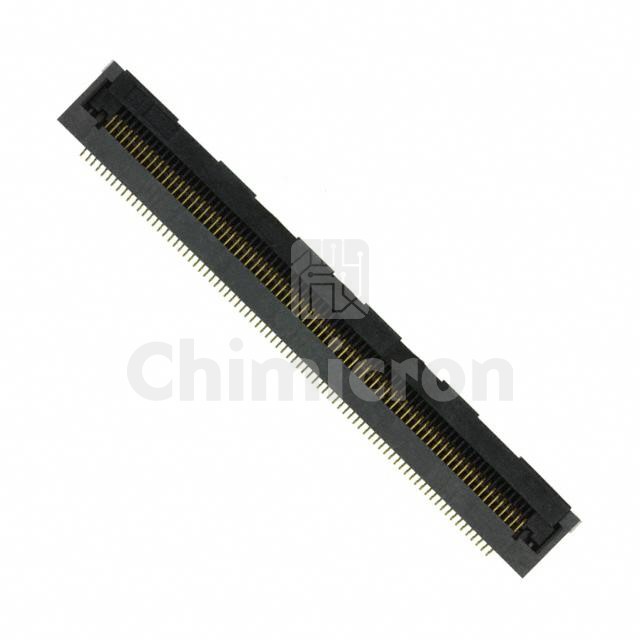

FH28H-80S-0.5SH(05)
Manufacturer: Hirose
Description: CONN FFC BOTTOM 80POS 0.50MM R/A
Category : Connectors, Interconnects
Family: FFC, FPC (Flat Flexible) Connectors
Series: FH28
In Stock:4200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FH28H-80S-0.5SH(05) Hirose at chimicron.com. We have 4200 pieces of FH28H-80S-0.5SH(05) in stock available now. Submit an inquiry for FH28H-80S-0.5SH(05) or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesFH28
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Flat Flex TypeFFC, FPC
Mounting TypeSurface Mount, Right Angle
Connector/Contact TypeContacts, Bottom
Number of Positions80
Pitch0.020" (0.50mm)
TerminationSolder
FFC, FCB Thickness0.30mm
Height Above Board0.100" (2.54mm)
Locking FeatureRotary Lock
Cable End TypeTabbed
Contact MaterialPhosphor Bronze
Contact FinishGold
Housing MaterialLiquid Crystal Polymer (LCP), Halogen Free
Actuator MaterialLiquid Crystal Polymer (LCP), Halogen Free
FeaturesSolder Retention, Zero Insertion Force (ZIF)
Voltage Rating50V
Operating Temperature-40°C ~ 105°C
Material Flammability RatingUL94 V-0
