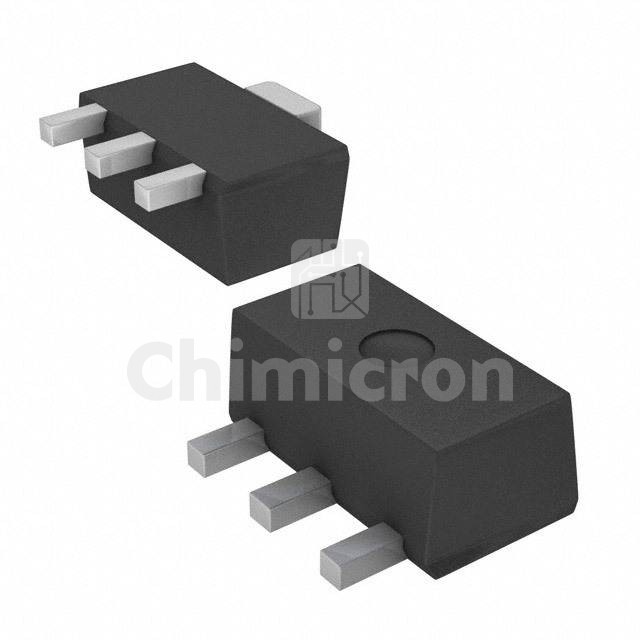

AZ1117R-ADJTRE1
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: IC REG LIN POS ADJ 1.25A SOT89
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: AZ1117
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AZ1117R-ADJTRE1 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 100000 pieces of AZ1117R-ADJTRE1 in stock available now. Submit an inquiry for AZ1117R-ADJTRE1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAZ1117
PackageTape & Reel (TR)
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)15V
Voltage - Output (Min/Fixed)1.25V
Voltage - Output (Max)13.75V
Voltage Dropout (Max)1.25V @ 1A
Current - Output1.25A
Current - Quiescent (Iq)10 mA
Current - Supply (Max)-
PSRR75dB (120Hz)
Control Features-
Protection FeaturesThermal Shutdown
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseTO-243AA
Supplier Device PackageSOT-89-3
