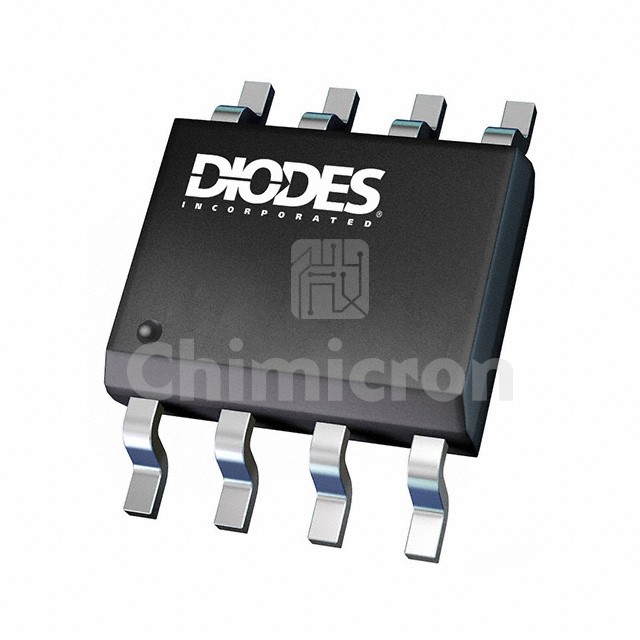

AP2204MP-ADJTRG1
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: IC REG LINEAR POS ADJ 150MA 8SO
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:400000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AP2204MP-ADJTRG1 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 400000 pieces of AP2204MP-ADJTRG1 in stock available now. Submit an inquiry for AP2204MP-ADJTRG1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusNot For New Designs
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)24V
Voltage - Output (Min/Fixed)1.24V
Voltage - Output (Max)22V
Voltage Dropout (Max)0.5V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)50 µA
Current - Supply (Max)2.5 mA
PSRR60dB (100Hz ~ 1kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package8-SO-EP
