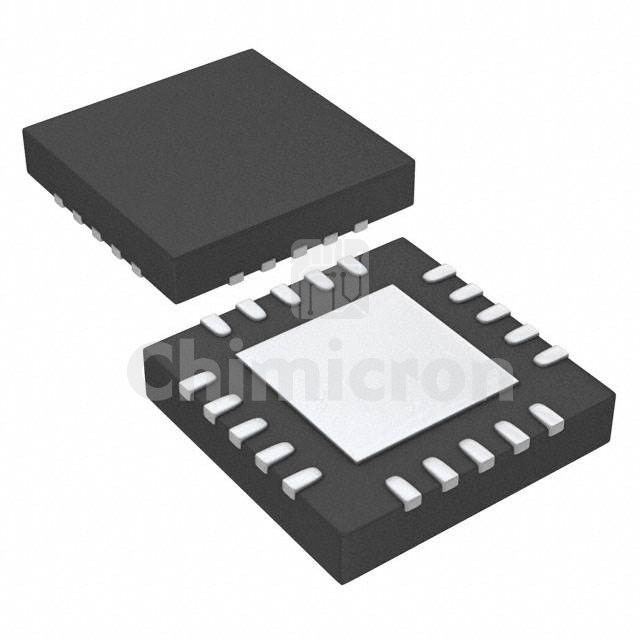

TPS74301RGWR
Manufacturer: Texas
Description: IC REG LIN POS ADJ 1.5A 20VQFN
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - Linear
Series: -
In Stock:4800
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS74301RGWR Texas at chimicron.com. We have 4800 pieces of TPS74301RGWR in stock available now. Submit an inquiry for TPS74301RGWR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)5.5V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)3.6V
Voltage Dropout (Max)0.12V @ 1.5A
Current - Output1.5A
Current - Quiescent (Iq)115 µA
Current - Supply (Max)1.5 mA
PSRR73dB ~ 42dB (1kHz ~ 800kHz)
Control FeaturesEnable, Power Good, Tracking
Protection FeaturesOver Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case20-VQFN Exposed Pad
Supplier Device Package20-VQFN (5x5)
