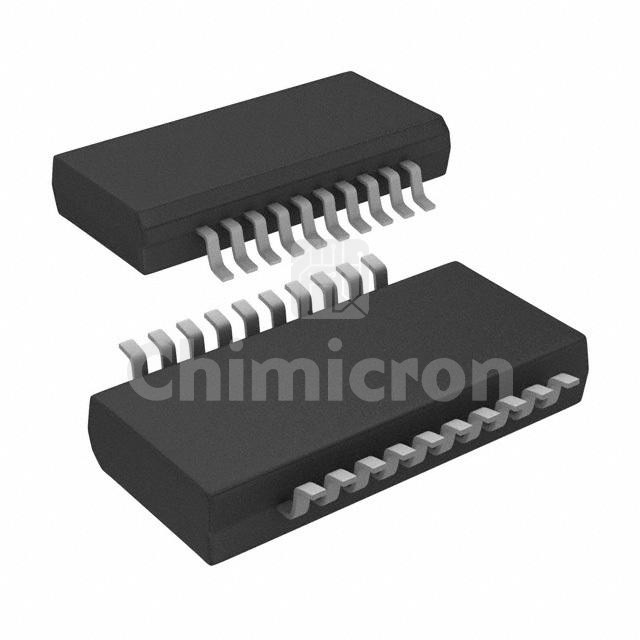

ADS7844E
Manufacturer: Texas
Description: IC ADC 12BIT SAR 20SSOP/QSOP
Category : Integrated Circuits
Family: Data Acquisition - Analog to Digital Converters (ADC)
Series: -
In Stock:500000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADS7844E Texas at chimicron.com. We have 500000 pieces of ADS7844E in stock available now. Submit an inquiry for ADS7844E or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Number of Bits12
Sampling Rate (Per Second)200k
Number of Inputs4, 8
Input TypeDifferential, Single Ended
Data InterfaceSPI
ConfigurationMUX-S/H-ADC
Ratio - S/H:ADC1:1
Number of A/D Converters1
ArchitectureSAR
Reference TypeExternal
Voltage - Supply, Analog2.7V ~ 3.6V, 5V
Voltage - Supply, Digital2.7V ~ 3.6V, 5V
Features-
Operating Temperature-40°C ~ 85°C
Package / Case20-SSOP (0.154", 3.90mm Width)
Supplier Device Package20-SSOP/QSOP
Mounting TypeSurface Mount
