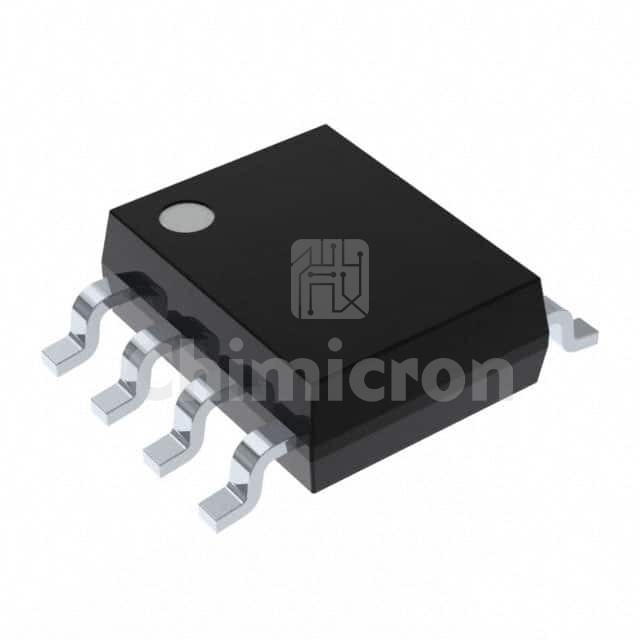

MAX1771ESA+T
Manufacturer: Maxim Integrated
Description: IC REG CTRLR BST/BUCK-BST 8SOIC
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:18375
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX1771ESA+T Maxim Integrated at chimicron.com. We have 18375 pieces of MAX1771ESA+T in stock available now. Submit an inquiry for MAX1771ESA+T or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive
TopologyBoost, Buck-Boost
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)3V ~ 16.5V
Frequency - Switching300kHz
Duty Cycle (Max)92%
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesEnable
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
