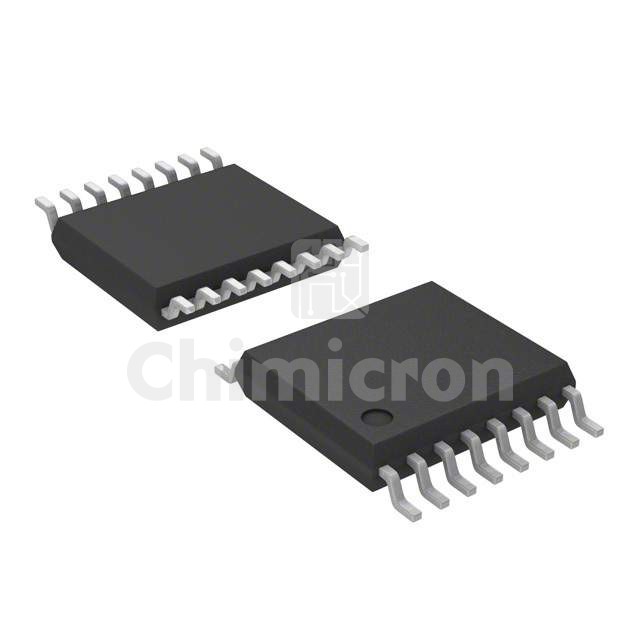

UCC2806PWTRG4
Manufacturer: Texas
Description: IC REG CTRLR MULT TOP 16TSSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:100000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCC2806PWTRG4 Texas at chimicron.com. We have 100000 pieces of UCC2806PWTRG4 in stock available now. Submit an inquiry for UCC2806PWTRG4 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Up/Step-Down
Output ConfigurationPositive, Isolation Capable
TopologyBoost, Flyback, Forward Converter
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)8V ~ 14.5V
Frequency - Switching47kHz
Duty Cycle (Max)50%
Synchronous RectifierYes
Clock SyncNo
Serial Interfaces-
Control FeaturesCurrent Limit, Enable, Frequency Control
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package16-TSSOP
