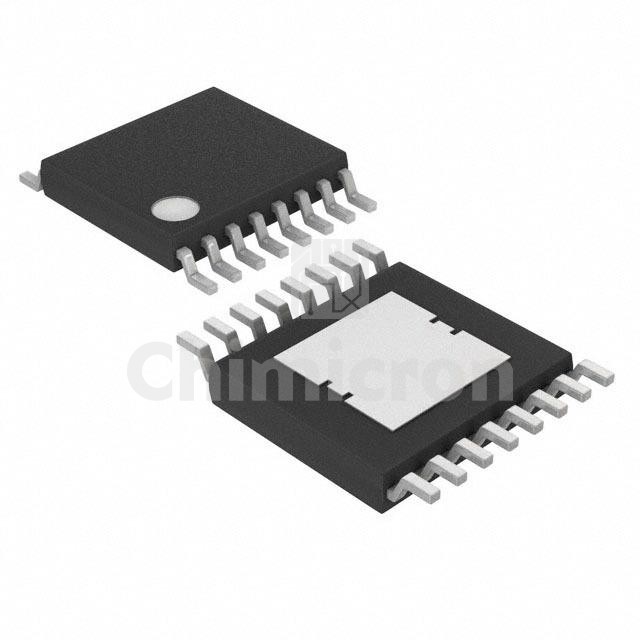

MAX5069AAUE+
Manufacturer: Maxim Integrated
Description: IC REG CTRLR BUCK 16TSSOP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: -
In Stock:1500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX5069AAUE+ Maxim Integrated at chimicron.com. We have 1500 pieces of MAX5069AAUE+ in stock available now. Submit an inquiry for MAX5069AAUE+ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Down
Output ConfigurationPositive, Isolation Capable
TopologyBuck
Number of Outputs1
Output Phases1
Voltage - Supply (Vcc/Vdd)10.8V ~ 24V
Frequency - Switching50kHz ~ 2.5MHz
Duty Cycle (Max)100%
Synchronous RectifierNo
Clock SyncYes
Serial Interfaces-
Control FeaturesDead Time Control, Enable, Frequency Control
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package16-TSSOP-EP
