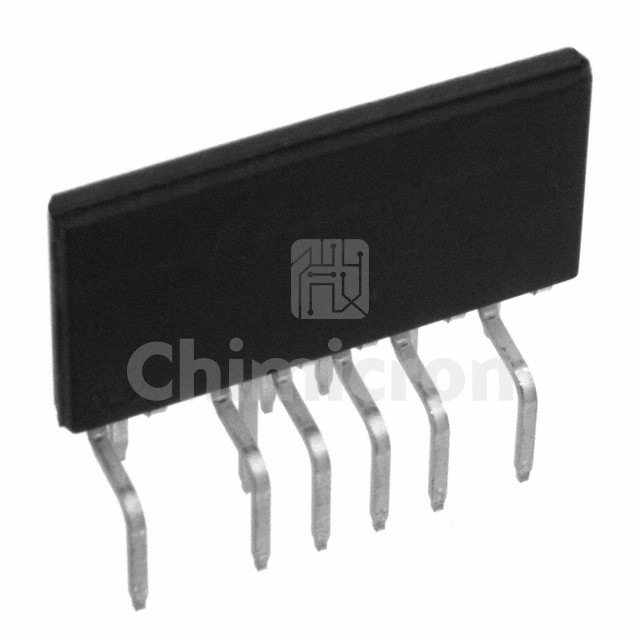

TFS7702H
Manufacturer: Power Integrations
Description: IC REG CTRLR MULT TOPOLOGY 7ESIP
Category : Integrated Circuits
Family: PMIC - Voltage Regulators - DC DC Switching Controllers
Series: HiperTFS™-2
In Stock:1800
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TFS7702H Power Integrations at chimicron.com. We have 1800 pieces of TFS7702H in stock available now. Submit an inquiry for TFS7702H or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesHiperTFS™-2
PackageTube
Part StatusActive
Output TypeTransistor Driver
FunctionStep-Up, Step-Down
Output ConfigurationPositive, Isolation Capable
TopologyFlyback, Forward Converter
Number of Outputs2
Output Phases1
Voltage - Supply (Vcc/Vdd)Up to 11.5V
Frequency - Switching66kHz, 132kHz
Duty Cycle (Max)63%
Synchronous RectifierNo
Clock SyncNo
Serial Interfaces-
Control FeaturesEnable, Reset
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / Case16-SSIP, 12 Leads, Exposed Pad, Formed Leads
Supplier Device PackageeSIP-16F
