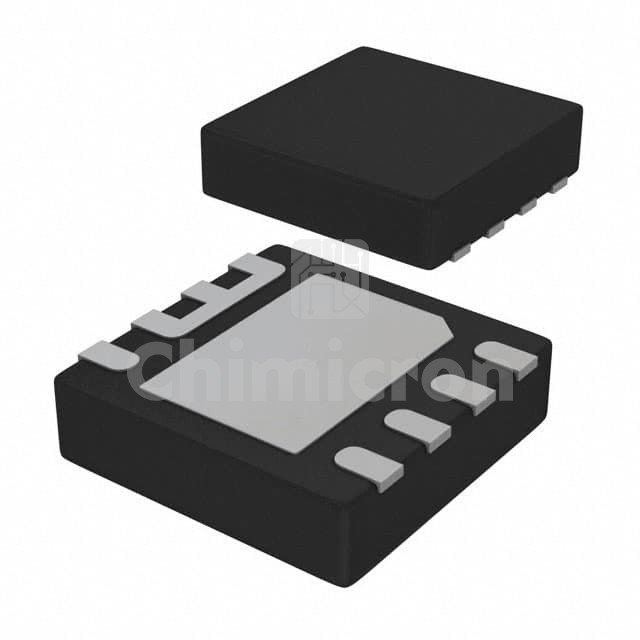

TPS22969DNYR
Manufacturer: Texas
Description: IC PWR SWITCH N-CHAN 1:1 8WSON
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:29000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS22969DNYR Texas at chimicron.com. We have 29000 pieces of TPS22969DNYR in stock available now. Submit an inquiry for TPS22969DNYR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load2.5V ~ 5.5V
Voltage - Supply (Vcc/Vdd)0.8V ~ 5.5V
Current - Output (Max)6A
Rds On (Typ)4.4mOhm
Input TypeNon-Inverting
FeaturesLoad Discharge, Slew Rate Controlled
Fault Protection-
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-WSON (3x3)
Package / Case8-PowerWDFN
