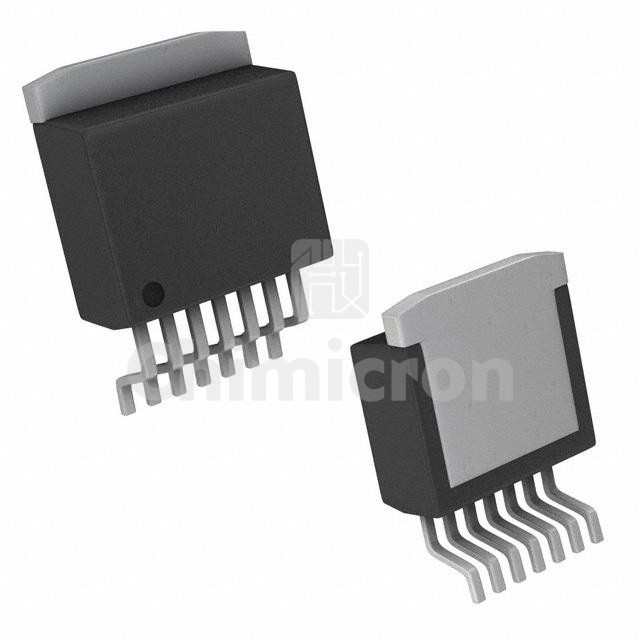

BTS500801TMAATMA1
Manufacturer: IR (Infineon Technologies)
Description: IC PWR SWITCH N-CHAN 1:1 TO220-7
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: PROFET®
In Stock:101000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the BTS500801TMAATMA1 IR (Infineon Technologies) at chimicron.com. We have 101000 pieces of BTS500801TMAATMA1 in stock available now. Submit an inquiry for BTS500801TMAATMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesPROFET®
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load5.5V ~ 38V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)9.5A
Rds On (Typ)7mOhm
Input TypeNon-Inverting
FeaturesAuto Restart
Fault ProtectionCurrent Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TO220-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
