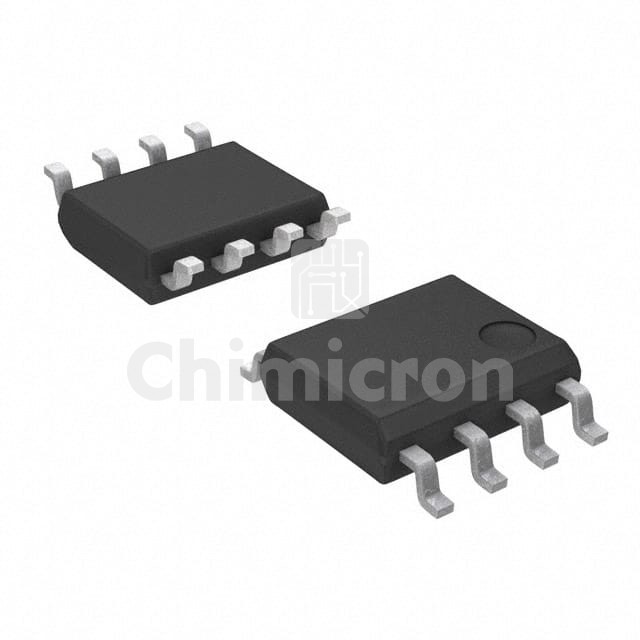

ZXMS6005DN8Q-13
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: IC PWR DRIVER N-CHAN 1:1 8SOIC
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: Automotive, AEC-Q101, INTELLIFET®
In Stock:15000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ZXMS6005DN8Q-13 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 15000 pieces of ZXMS6005DN8Q-13 in stock available now. Submit an inquiry for ZXMS6005DN8Q-13 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesAutomotive, AEC-Q101, INTELLIFET®
PackageTape & Reel (TR)
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs2
Ratio - Input:Output1:1
Output ConfigurationLow Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load60V (Max)
Voltage - Supply (Vcc/Vdd)3.3V, 5V
Current - Output (Max)1.8A
Rds On (Typ)150mOhm
Input TypeNon-Inverting
FeaturesAuto Restart
Fault ProtectionCurrent Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Supplier Device Package8-SOIC
Package / Case8-SOIC (0.154", 3.90mm Width)
