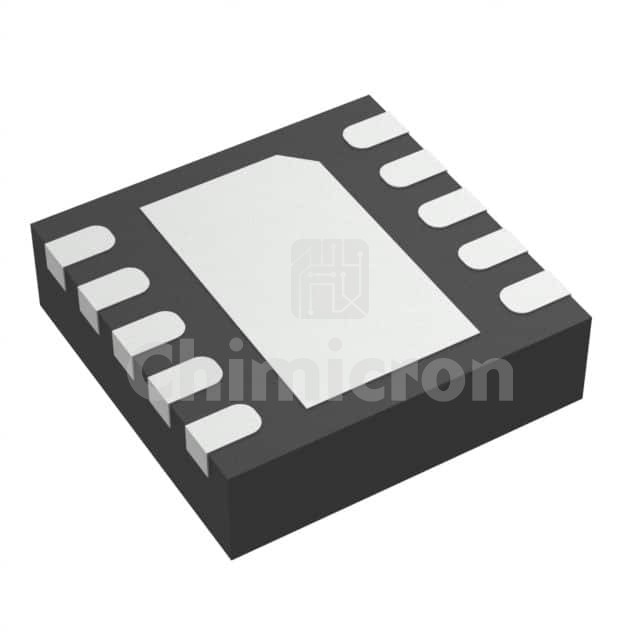

TPS2559DRCT
Manufacturer: Texas
Description: IC PWR SWITCH N-CHAN 1:1 10VSON
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:2950000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS2559DRCT Texas at chimicron.com. We have 2950000 pieces of TPS2559DRCT in stock available now. Submit an inquiry for TPS2559DRCT or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load2.5V ~ 6.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)5.5A
Rds On (Typ)13mOhm
Input TypeNon-Inverting
FeaturesSlew Rate Controlled, Status Flag
Fault ProtectionCurrent Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package10-VSON (3x3)
Package / Case10-VFDFN Exposed Pad
