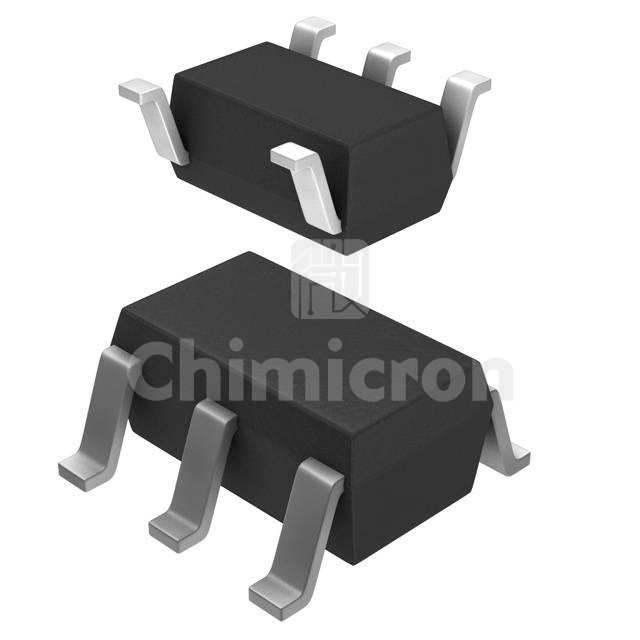

AP2171AW-7
Manufacturer: Zetex Semiconductors (Diodes Inc.)
Description: IC PWR SWITCH P-CHAN 1:1 SOT25
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:31500
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the AP2171AW-7 Zetex Semiconductors (Diodes Inc.) at chimicron.com. We have 31500 pieces of AP2171AW-7 in stock available now. Submit an inquiry for AP2171AW-7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeUSB Switch
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeP-Channel
InterfaceOn/Off
Voltage - Load2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)1A
Rds On (Typ)95mOhm
Input TypeNon-Inverting
FeaturesStatus Flag
Fault ProtectionCurrent Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device PackageSOT-25
Package / CaseSC-74A, SOT-753
