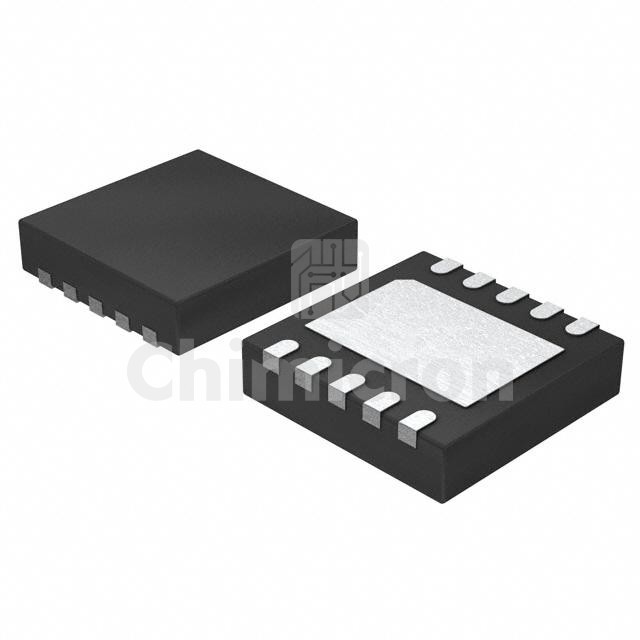

TPS22953DSQR
Manufacturer: Texas
Description: IC PWR SWITCH N-CHAN 1:1 10WSON
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: -
In Stock:303000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS22953DSQR Texas at chimicron.com. We have 303000 pieces of TPS22953DSQR in stock available now. Submit an inquiry for TPS22953DSQR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output ConfigurationHigh Side
Output TypeN-Channel
InterfaceOn/Off
Voltage - Load2.5V ~ 5.7V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)5A
Rds On (Typ)14mOhm
Input TypeNon-Inverting
FeaturesAuto Restart, Power Good, Slew Rate Controlled
Fault ProtectionOver Temperature, Reverse Current, UVLO
Operating Temperature-40°C ~ 105°C (TA)
Mounting TypeSurface Mount
Supplier Device Package10-WSON (2x2)
Package / Case10-WFDFN Exposed Pad
