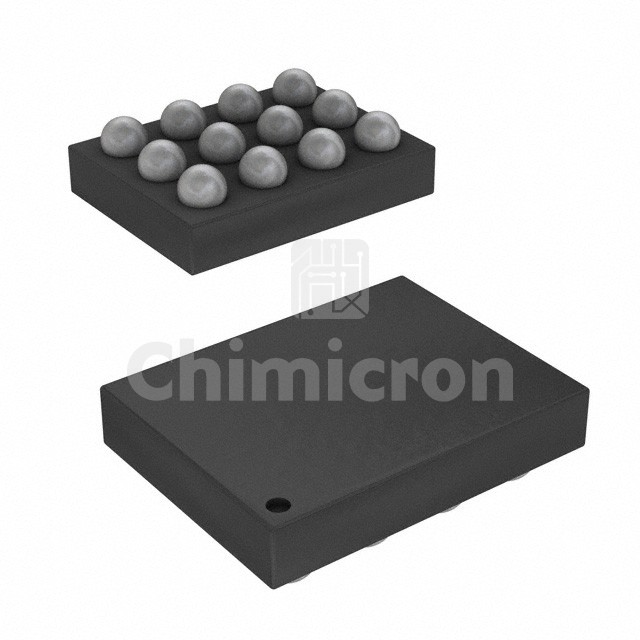

NX30P0121UKZ
Manufacturer: NXP Semiconductors
Description: IC PWR SWITCH N-CHAN 1:1 12WLCSP
Category : Integrated Circuits
Family: PMIC - Power Distribution Switches, Load Drivers
Series: NX3
In Stock:3150
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NX30P0121UKZ NXP Semiconductors at chimicron.com. We have 3150 pieces of NX30P0121UKZ in stock available now. Submit an inquiry for NX30P0121UKZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesNX3
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch TypeGeneral Purpose
Number of Outputs1
Ratio - Input:Output1:1
Output Configuration-
Output TypeN-Channel
Interface-
Voltage - Load2.5V ~ 20V
Voltage - Supply (Vcc/Vdd)Not Required
Current - Output (Max)3A
Rds On (Typ)54mOhm
Input Type-
Features-
Fault ProtectionCurrent Limiting (Adjustable), Over Temperature, Over Voltage, UVLO
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Supplier Device Package12-WLCSP (1.65x1.25)
Package / Case12-UFBGA, WLCSP
