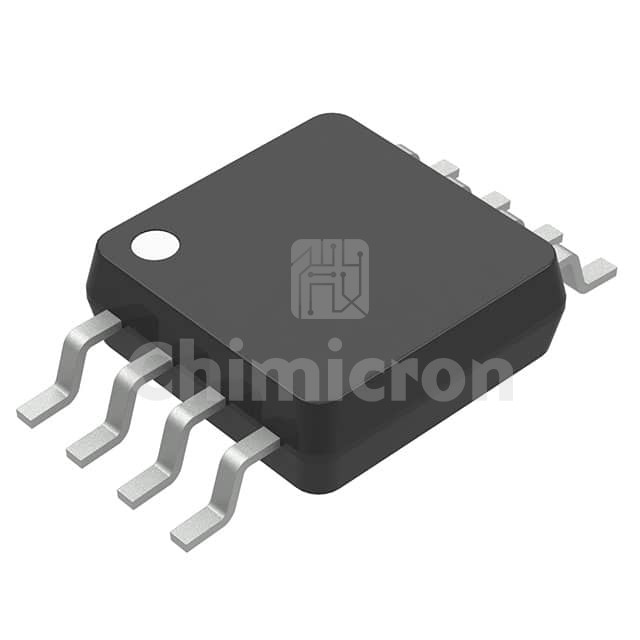

MCP14A0153-E/MS
Manufacturer: Roving Networks / Microchip Technology
Description: IC GATE DRVR LOW-SIDE 8MSOP
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:300
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MCP14A0153-E/MS Roving Networks / Microchip Technology at chimicron.com. We have 300 pieces of MCP14A0153-E/MS in stock available now. Submit an inquiry for MCP14A0153-E/MS or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Driven ConfigurationLow-Side
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)1.5A, 1.5A
Input TypeInverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)11.5ns, 10ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
Supplier Device Package8-MSOP
