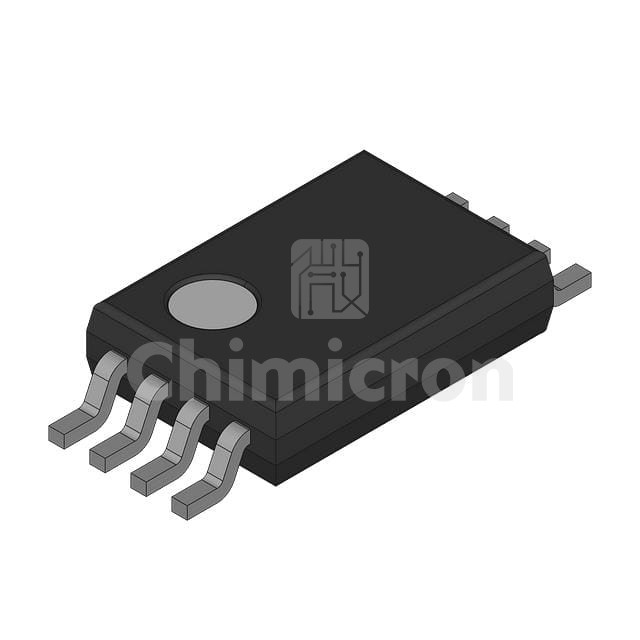

TPS2814PW
Manufacturer: Rochester Electronics
Description: TPS2814 ONE INVERTING, ONE NON-I
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:3250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TPS2814PW Rochester Electronics at chimicron.com. We have 3250 pieces of TPS2814PW in stock available now. Submit an inquiry for TPS2814PW or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageBulk
Part StatusActive
Driven ConfigurationLow-Side
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel, P-Channel MOSFET
Voltage - Supply4V ~ 14V
Logic Voltage - VIL, VIH1V, 4V
Current - Peak Output (Source, Sink)2A, 2A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)14ns, 15ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package8-TSSOP
