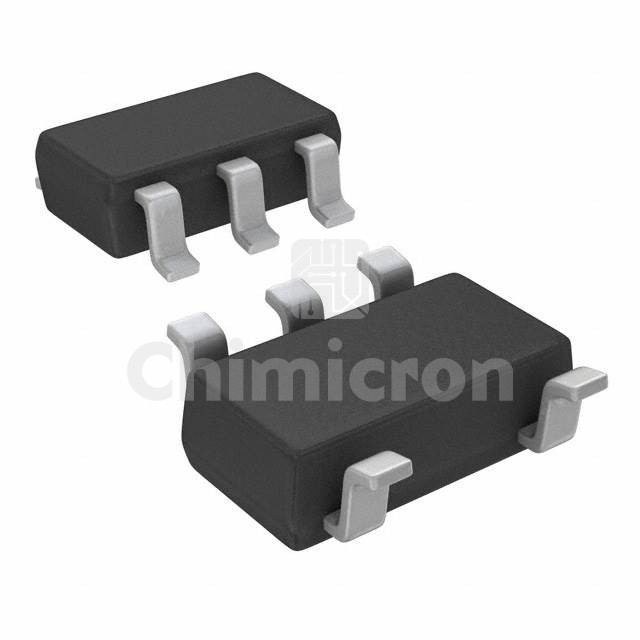

FAN3180TSX
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC GATE DRVR LOW-SIDE SOT23-5
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:2625
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the FAN3180TSX Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 2625 pieces of FAN3180TSX in stock available now. Submit an inquiry for FAN3180TSX or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel MOSFET
Voltage - Supply5V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)2.5A, 2.8A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)19ns, 13ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-74A, SOT-753
Supplier Device PackageSOT-23-5
