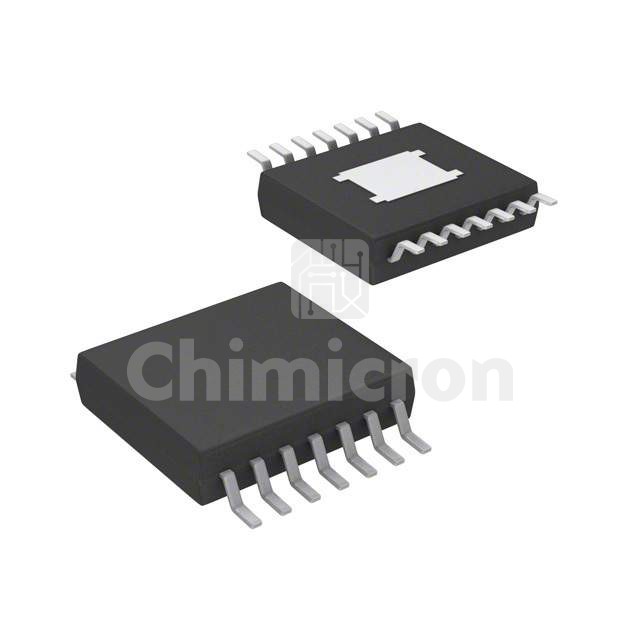

UCD7100PWPR
Manufacturer: Texas
Description: IC GATE DRVR LOW-SIDE 14HTSSOP
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:9450
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UCD7100PWPR Texas at chimicron.com. We have 9450 pieces of UCD7100PWPR in stock available now. Submit an inquiry for UCD7100PWPR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeN-Channel MOSFET
Voltage - Supply4.25V ~ 15V
Logic Voltage - VIL, VIH1.16V, 2.08V
Current - Peak Output (Source, Sink)4A, 4A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)10ns, 10ns
Operating Temperature-40°C ~ 105°C (TJ)
Mounting TypeSurface Mount
Package / Case14-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package14-HTSSOP
