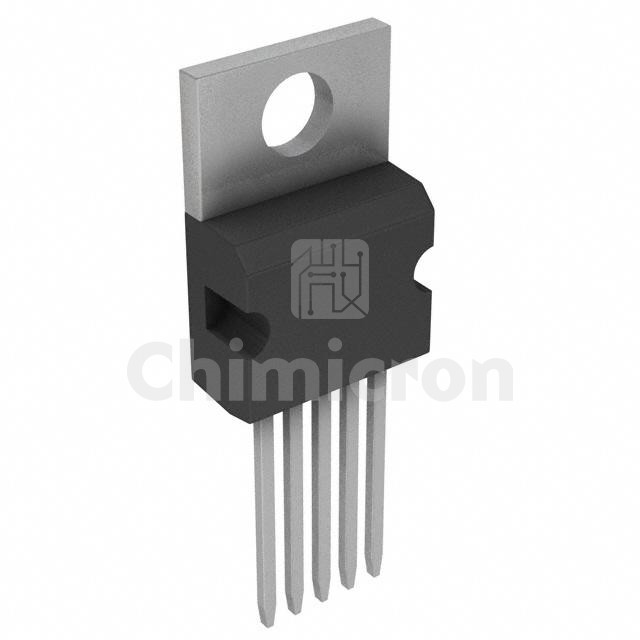

UC3710T
Manufacturer: Texas
Description: IC GATE DRVR LOW-SIDE TO220-5
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:208
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the UC3710T Texas at chimicron.com. We have 208 pieces of UC3710T in stock available now. Submit an inquiry for UC3710T or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Driven ConfigurationLow-Side
Channel TypeSingle
Number of Drivers1
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply4.7V ~ 18V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)6A, 6A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)85ns, 85ns
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-220-5
Supplier Device PackageTO-220-5
