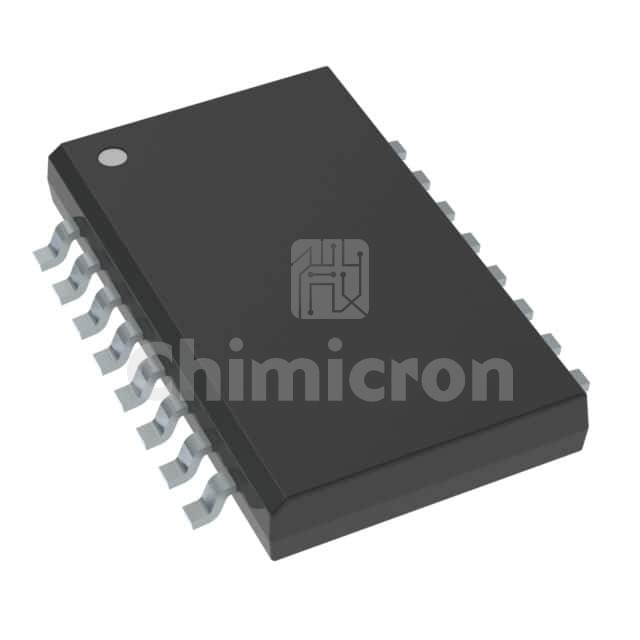

ADUM4221BRIZ-RL
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: ISO 1/2 BRIDGE DRV W/DEADTIME UV
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: -
In Stock:96
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADUM4221BRIZ-RL Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 96 pieces of ADUM4221BRIZ-RL in stock available now. Submit an inquiry for ADUM4221BRIZ-RL or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeIGBT
Voltage - Supply2.5V ~ 6.5V
Logic Voltage - VIL, VIH1.5V, 3.5V
Current - Peak Output (Source, Sink)4A, 6A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)25ns, 30ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SOIC
