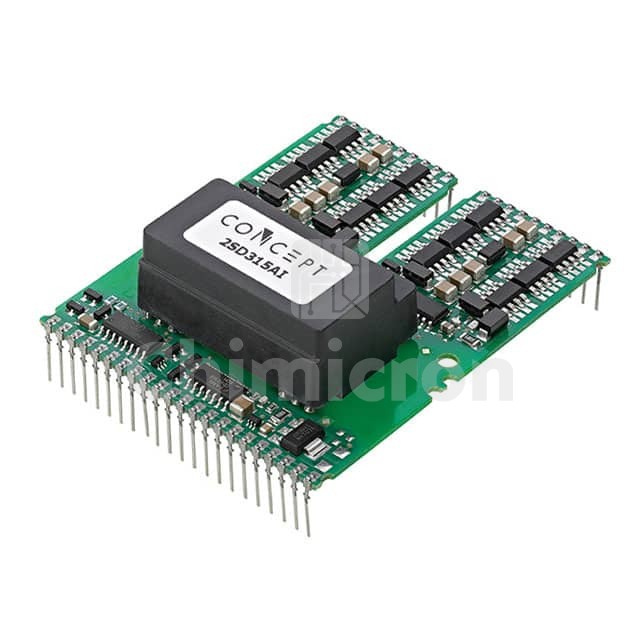

2SD315AI
Manufacturer: Power Integrations
Description: IC GATE DRVR HALF-BRIDGE MODULE
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: SCALE™-1
In Stock:105
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2SD315AI Power Integrations at chimicron.com. We have 105 pieces of 2SD315AI in stock available now. Submit an inquiry for 2SD315AI or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesSCALE™-1
PackageTray
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel Type-
Number of Drivers2
Gate TypeIGBT, N-Channel, P-Channel MOSFET
Voltage - Supply-
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)18A, 18A
Input Type-
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)160ns, 130ns
Operating Temperature-40°C ~ 85°C
Mounting TypeThrough Hole
Package / Case44-DIP Module, 42 Leads
Supplier Device PackageModule
