2EDL05I06BFXUMA1
Manufacturer: Rochester Electronics
Description: 2EDL05I06 - GATE DRIVER
Category : Integrated Circuits
Family: PMIC - Gate Drivers
Series: EiceDriver™
In Stock:250000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the 2EDL05I06BFXUMA1 Rochester Electronics at chimicron.com. We have 250000 pieces of 2EDL05I06BFXUMA1 in stock available now. Submit an inquiry for 2EDL05I06BFXUMA1 or send an email to [email protected], we will contact you in 24 hours.
Product Details
SeriesEiceDriver™
PackageBulk
Part StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeIGBT
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH1.1V, 1.7V
Current - Peak Output (Source, Sink)500mA, 500mA
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)48ns, 24ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount

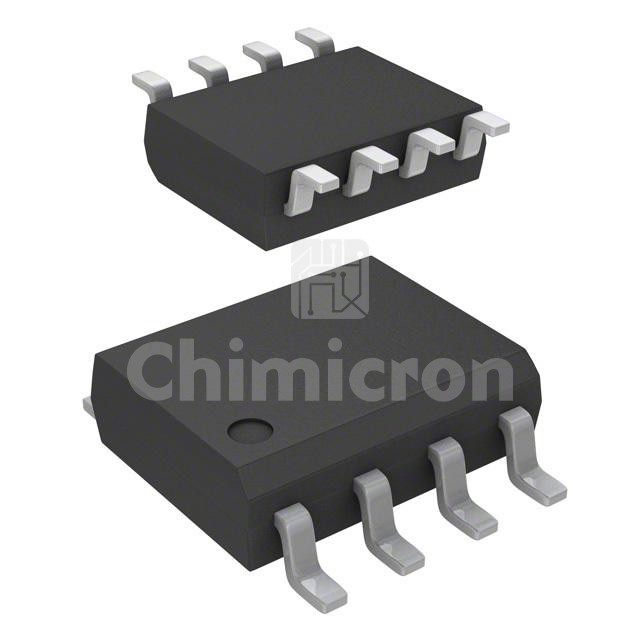

Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device PackagePG-DSO-8
