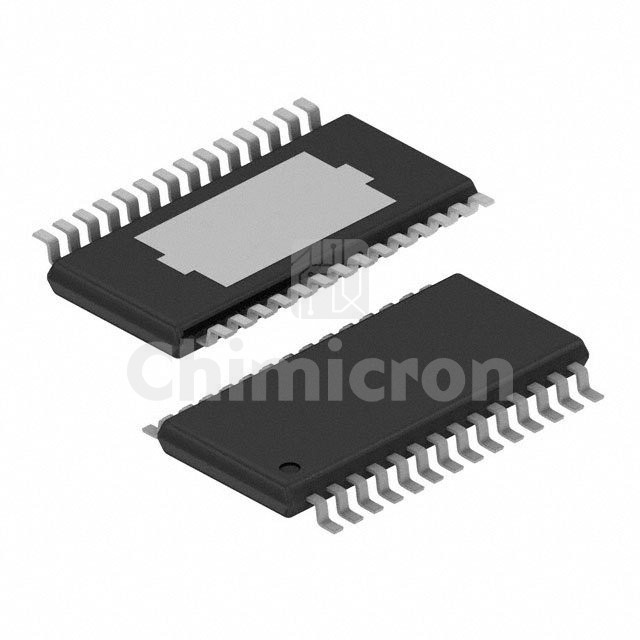

DRV8824PWPR
Manufacturer: Texas
Description: IC MTR DRVR BIPLR 8.2-45V 28SSOP
Category : Integrated Circuits
Family: PMIC - Motor Drivers, Controllers
Series: -
In Stock:34145
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DRV8824PWPR Texas at chimicron.com. We have 34145 pieces of DRV8824PWPR in stock available now. Submit an inquiry for DRV8824PWPR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Motor Type - StepperBipolar
Motor Type - AC, DC-
FunctionDriver - Fully Integrated, Control and Power Stage
Output ConfigurationHalf Bridge (4)
InterfaceLogic
TechnologyPower MOSFET
Step Resolution1 ~ 1/32
ApplicationsGeneral Purpose
Current - Output1.6A
Voltage - Supply8.2V ~ 45V
Voltage - Load8.2V ~ 45V
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case28-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package28-HTSSOP
