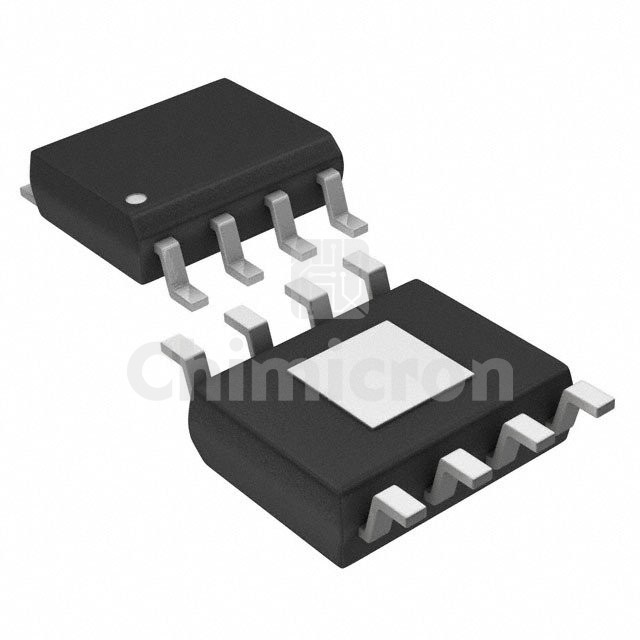

MAX256ASA+
Manufacturer: Maxim Integrated
Description: IC DVR H-BRIDGE 3W 8-SOIC
Category : Integrated Circuits
Family: PMIC - Full, Half-Bridge Drivers
Series: -
In Stock:50000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX256ASA+ Maxim Integrated at chimicron.com. We have 50000 pieces of MAX256ASA+ in stock available now. Submit an inquiry for MAX256ASA+ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Output ConfigurationHalf Bridge (2)
ApplicationsTransformers
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)500mOhm LS + HS
Current - Output / Channel1A
Current - Peak Output-
Voltage - Supply3V ~ 5.5V
Voltage - Load3V ~ 5.5V
Operating Temperature-40°C ~ 150°C (TJ)
FeaturesInternal Oscillator, Watchdog Timer
Fault ProtectionESD, Over Temperature, UVLO
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package8-SO-EP
