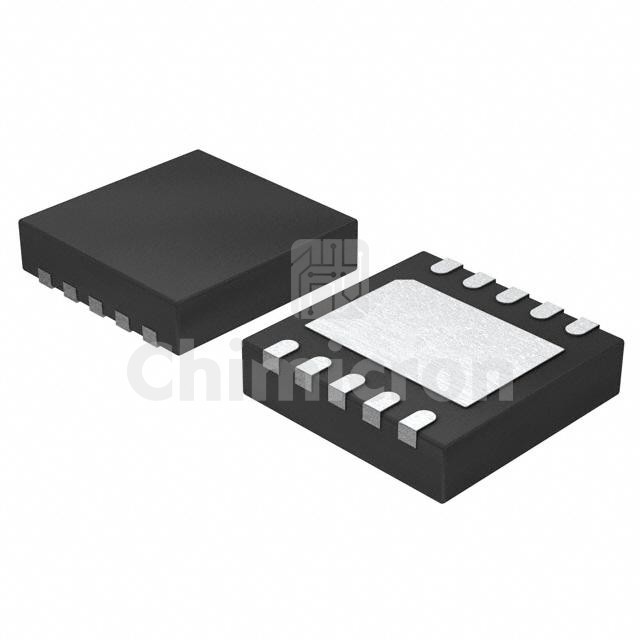

ADG1421BCPZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SW SPST 2.1OHM RON 10LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:3931
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1421BCPZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 3931 pieces of ADG1421BCPZ-REEL7 in stock available now. Submit an inquiry for ADG1421BCPZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits2
On-State Resistance (Max)2.4Ohm
Channel-to-Channel Matching (ΔRon)20mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)145ns, 145ns
-3db Bandwidth180MHz
Charge Injection-5pC
Channel Capacitance (CS(off), CD(off))18pF, 22pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-74dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case10-VFDFN Exposed Pad, CSP
Supplier Device Package10-LFCSP-WD (3x3)
