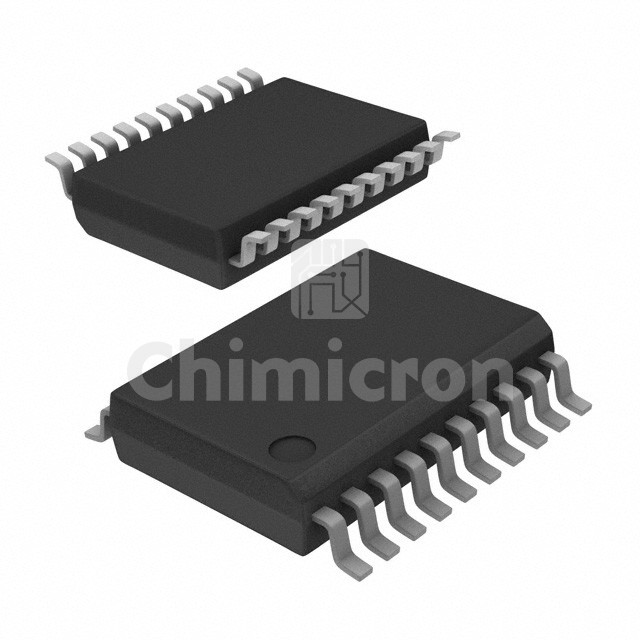

MAX4533EAP+
Manufacturer: Maxim Integrated
Description: IC SWITCH QUAD SPDT 20SSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:6263
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX4533EAP+ Maxim Integrated at chimicron.com. We have 6263 pieces of MAX4533EAP+ in stock available now. Submit an inquiry for MAX4533EAP+ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)175Ohm
Channel-to-Channel Matching (ΔRon)1Ohm
Voltage - Supply, Single (V+)9V ~ 36V
Voltage - Supply, Dual (V±)±4.5V ~ 18V
Switch Time (Ton, Toff) (Max)250ns, 150ns
-3db Bandwidth-
Charge Injection1.5pC
Channel Capacitance (CS(off), CD(off))5pF
Current - Leakage (IS(off)) (Max)20nA
Crosstalk-66dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case20-SSOP (0.209", 5.30mm Width)
Supplier Device Package20-SSOP
