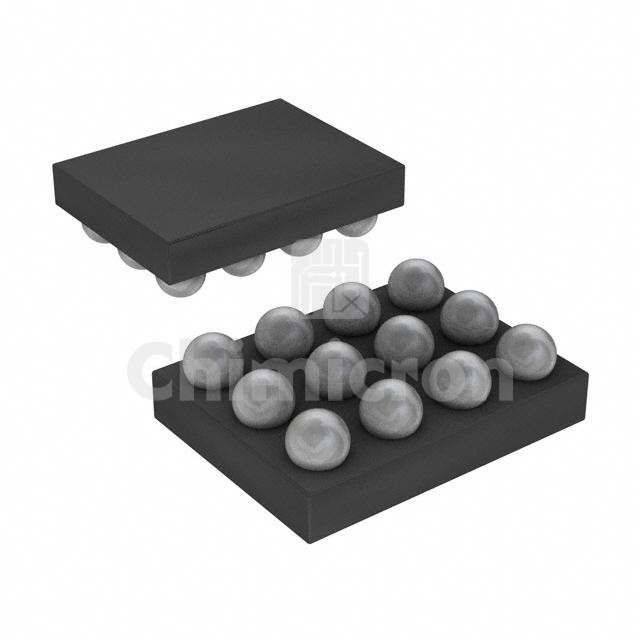

MAX4684EBC+T
Manufacturer: Maxim Integrated
Description: IC SWITCH DUAL SPDT 12UCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:250000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX4684EBC+T Maxim Integrated at chimicron.com. We have 250000 pieces of MAX4684EBC+T in stock available now. Submit an inquiry for MAX4684EBC+T or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)800mOhm
Channel-to-Channel Matching (ΔRon)60mOhm
Voltage - Supply, Single (V+)1.8V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)50ns, 30ns
-3db Bandwidth-
Charge Injection200pC
Channel Capacitance (CS(off), CD(off))84pF, 37pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-68dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case12-WFBGA, WLCSP
Supplier Device Package12-UCSP (1.54x2.02)
