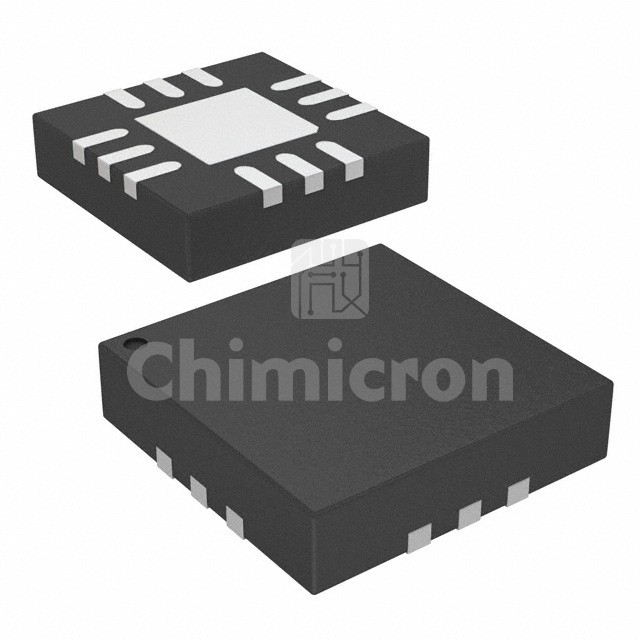

DG2034EDN-T1-GE4
Manufacturer: Vishay / Siliconix
Description: IC SWITCH SP4T SINGLE 12QFN
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:525
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG2034EDN-T1-GE4 Vishay / Siliconix at chimicron.com. We have 525 pieces of DG2034EDN-T1-GE4 in stock available now. Submit an inquiry for DG2034EDN-T1-GE4 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits1
On-State Resistance (Max)2.5Ohm
Channel-to-Channel Matching (ΔRon)20mOhm
Voltage - Supply, Single (V+)1.8V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)25ns, 20ns
-3db Bandwidth166MHz
Charge Injection-2.6pC
Channel Capacitance (CS(off), CD(off))7pF, -
Current - Leakage (IS(off)) (Max)2nA
Crosstalk-71dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case12-VFQFN Exposed Pad
Supplier Device Package12-QFN (3x3)
