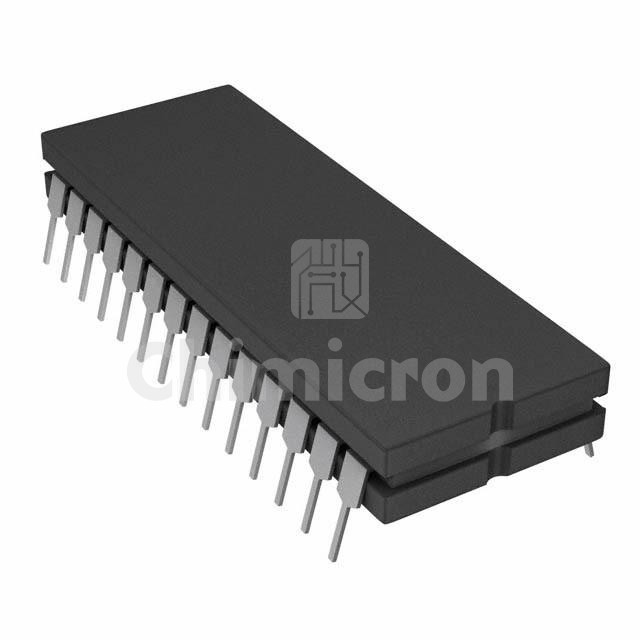

ADG506ATQ/883B
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 16CH 28CDIP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2352
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG506ATQ/883B Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2352 pieces of ADG506ATQ/883B in stock available now. Submit an inquiry for ADG506ATQ/883B or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit16:1
Number of Circuits1
On-State Resistance (Max)300Ohm
Channel-to-Channel Matching (ΔRon)15Ohm (Typ)
Voltage - Supply, Single (V+)10.8V ~ 16.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)300ns, 300ns
-3db Bandwidth-
Charge Injection4pC
Channel Capacitance (CS(off), CD(off))5pF, 44pF
Current - Leakage (IS(off)) (Max)1nA
Crosstalk-
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Package / Case28-CDIP (0.600", 15.24mm)
Supplier Device Package28-CDIP
