TMUX1575YCJR
Manufacturer: Texas
Description: LOW-CAPACITANCE, 2:1 (SPDT) 4-CH
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:300000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TMUX1575YCJR Texas at chimicron.com. We have 300000 pieces of TMUX1575YCJR in stock available now. Submit an inquiry for TMUX1575YCJR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)8Ohm
Channel-to-Channel Matching (ΔRon)100mOhm
Voltage - Supply, Single (V+)1.08V ~ 3.6V
Voltage - Supply, Dual (V±)1.08V ~ 3.6V
Switch Time (Ton, Toff) (Max)130ns, 60ns
-3db Bandwidth-
Charge Injection5pC
Channel Capacitance (CS(off), CD(off))3.5pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-90dB @ 100kHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount

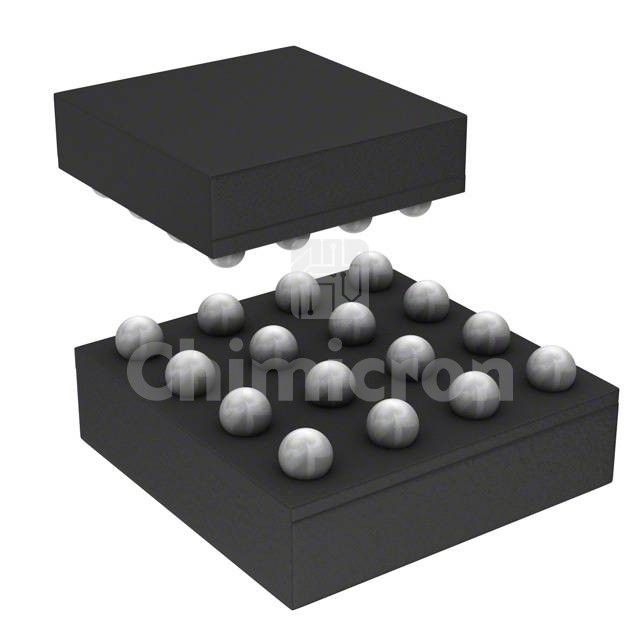

Package / Case16-BGA, WLCSP
Supplier Device Package16-WLCSP (1.34x1.34)
