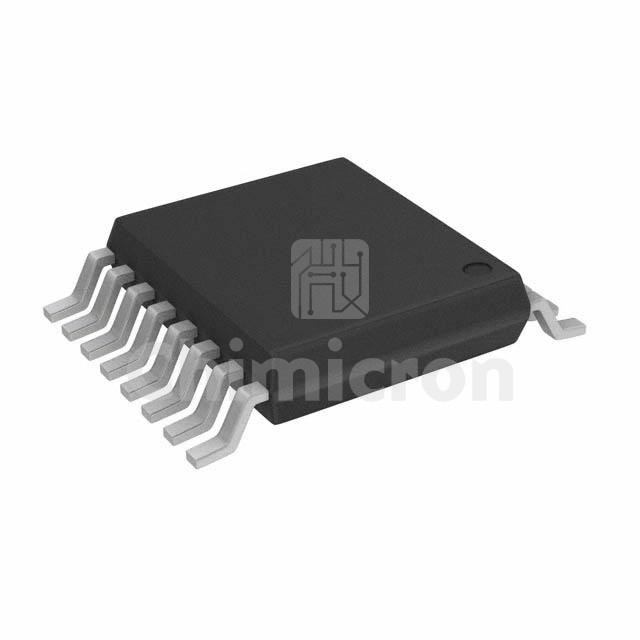

MAX314CUE+
Manufacturer: Maxim Integrated
Description: IC SWITCH QUAD SPST 16TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:44300
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the MAX314CUE+ Maxim Integrated at chimicron.com. We have 44300 pieces of MAX314CUE+ in stock available now. Submit an inquiry for MAX314CUE+ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPST - NO/NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)10Ohm
Channel-to-Channel Matching (ΔRon)300mOhm
Voltage - Supply, Single (V+)4.5V ~ 30V
Voltage - Supply, Dual (V±)±4.5V ~ 20V
Switch Time (Ton, Toff) (Max)225ns, 185ns
-3db Bandwidth-
Charge Injection20pC
Channel Capacitance (CS(off), CD(off))15pF, 15pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-85dB @ 1MHz
Operating Temperature0°C ~ 70°C (TA)
Mounting TypeSurface Mount
Package / Case16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package16-TSSOP
