NC7WB66L8X
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC SWITCH DUAL SPST-NO 8MICROPAK
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:4200
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NC7WB66L8X Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 4200 pieces of NC7WB66L8X in stock available now. Submit an inquiry for NC7WB66L8X or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits2
On-State Resistance (Max)10Ohm
Channel-to-Channel Matching (ΔRon)200mOhm
Voltage - Supply, Single (V+)1.65V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)3.2ns, 4.1ns
-3db Bandwidth300MHz
Charge Injection-
Channel Capacitance (CS(off), CD(off))5pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-70dB @ 10MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount

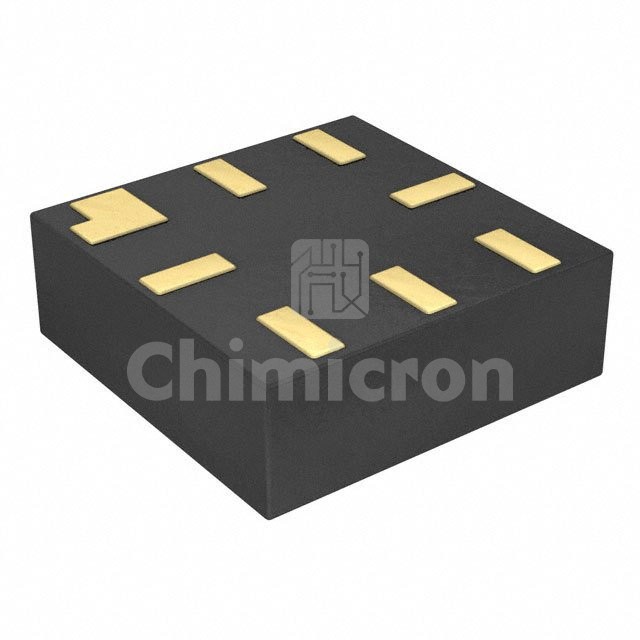

Package / Case8-UFQFN
Supplier Device Package8-MicroPak™
