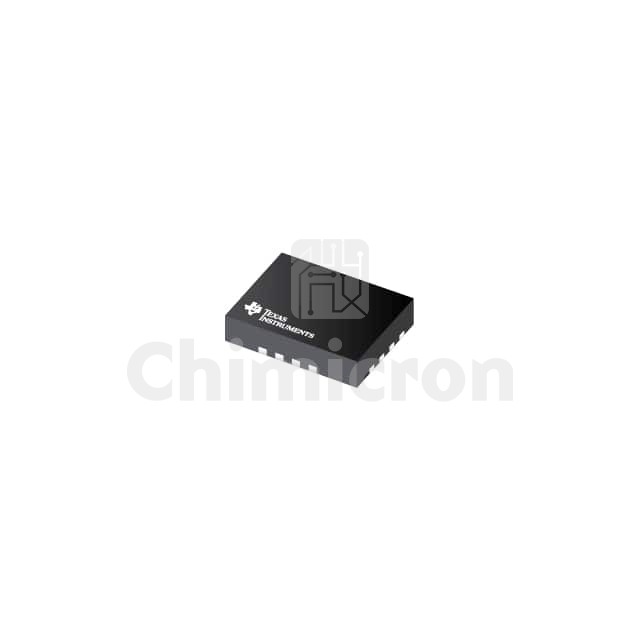

TMUX1209RSVR
Manufacturer: Texas
Description: IC SWITCH DUAL 16UQFN
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:5250
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TMUX1209RSVR Texas at chimicron.com. We have 5250 pieces of TMUX1209RSVR in stock available now. Submit an inquiry for TMUX1209RSVR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)5Ohm (Typ)
Channel-to-Channel Matching (ΔRon)150mOhm
Voltage - Supply, Single (V+)-
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)14ns, 5ns (Typ)
-3db Bandwidth125MHz
Charge Injection9pC
Channel Capacitance (CS(off), CD(off))13pF, 38pF
Current - Leakage (IS(off)) (Max)75nA (Typ)
Crosstalk-62dB ~ -42dB @ 1MHz ~ 10MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-UFQFN
Supplier Device Package16-UQFN (2.6x1.8)
