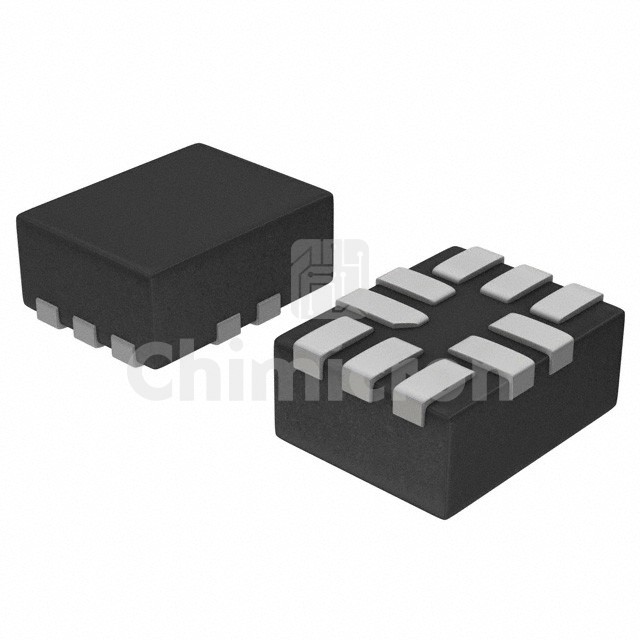

NS5A4684SMNTBG
Manufacturer: Sanyo Semiconductor/ON Semiconductor
Description: IC ANLG SWITCH DUAL SPDT 10WQFN
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:7693
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the NS5A4684SMNTBG Sanyo Semiconductor/ON Semiconductor at chimicron.com. We have 7693 pieces of NS5A4684SMNTBG in stock available now. Submit an inquiry for NS5A4684SMNTBG or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)400mOhm
Channel-to-Channel Matching (ΔRon)100mOhm (Max)
Voltage - Supply, Single (V+)1.65V ~ 5.5V
Voltage - Supply, Dual (V±)-
Switch Time (Ton, Toff) (Max)50ns, 30ns
-3db Bandwidth19MHz
Charge Injection38pC
Channel Capacitance (CS(off), CD(off))60pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-70dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case10-WFQFN
Supplier Device Package10-WQFN (1.4x1.8)
