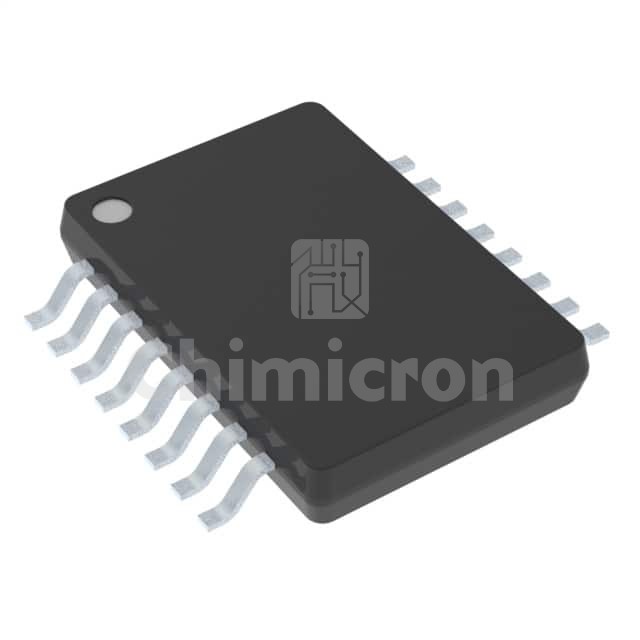

ADG1434YRUZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH QUAD SPDT 20TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:25000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1434YRUZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 25000 pieces of ADG1434YRUZ in stock available now. Submit an inquiry for ADG1434YRUZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)4.7Ohm
Channel-to-Channel Matching (ΔRon)500mOhm
Voltage - Supply, Single (V+)5V ~ 16.5V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)170ns, 75ns
-3db Bandwidth200MHz
Charge Injection-50pC
Channel Capacitance (CS(off), CD(off))12pF, 22pF
Current - Leakage (IS(off)) (Max)300pA
Crosstalk-70dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case20-TSSOP (0.173", 4.40mm Width)
Supplier Device Package20-TSSOP
