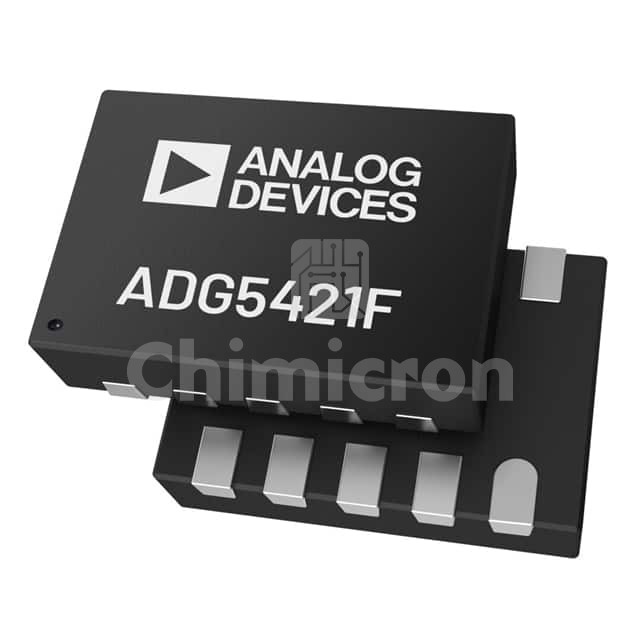

ADG5421FBCPZ-RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: 60V OV PROTECTED, HV SPSTX2 SWIT
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:10000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG5421FBCPZ-RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 10000 pieces of ADG5421FBCPZ-RL7 in stock available now. Submit an inquiry for ADG5421FBCPZ-RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)
Part StatusActive
Switch CircuitSPST - NC
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits2
On-State Resistance (Max)14Ohm
Channel-to-Channel Matching (ΔRon)20mOhm
Voltage - Supply, Single (V+)8V ~ 44V, ±5V ~ 22V
Voltage - Supply, Dual (V±)8V ~ 44V, ±5V ~ 22V
Switch Time (Ton, Toff) (Max)15.9µs, 160ns
-3db Bandwidth630MHz
Charge Injection-150pC
Channel Capacitance (CS(off), CD(off))6pF, 5pF
Current - Leakage (IS(off)) (Max)200pA
Crosstalk-78dB @ 1MHz
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case10-WFDFN Exposed Pad, CSP
Supplier Device Package10-LFCSP (3x2)
