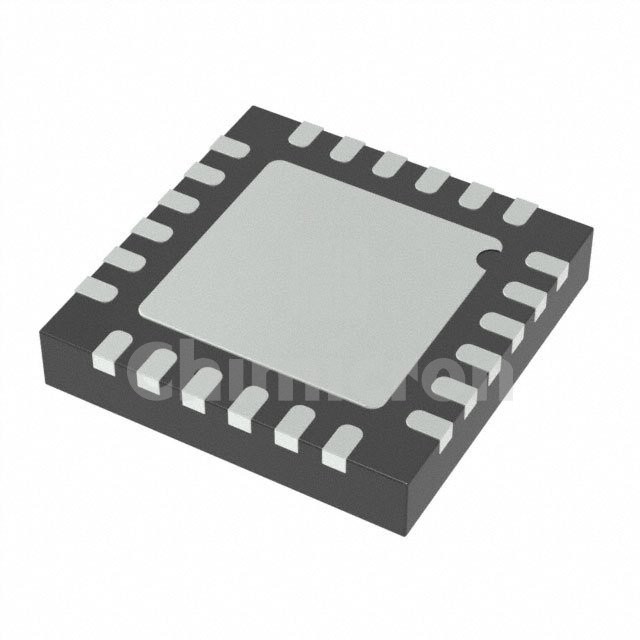

ADGS1412BCPZ-RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC SWITCH SPST QUAD 24-LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:788
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADGS1412BCPZ-RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 788 pieces of ADGS1412BCPZ-RL7 in stock available now. Submit an inquiry for ADGS1412BCPZ-RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)1.8Ohm
Channel-to-Channel Matching (ΔRon)100mOhm
Voltage - Supply, Single (V+)5V ~ 20V
Voltage - Supply, Dual (V±)±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max)135ns, 190ns
-3db Bandwidth170MHz
Charge Injection-20pC
Channel Capacitance (CS(off), CD(off))22pF, 23pF
Current - Leakage (IS(off)) (Max)550pA
Crosstalk-100dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case24-VFQFN Exposed Pad, CSP
Supplier Device Package24-LFCSP (4x4)
