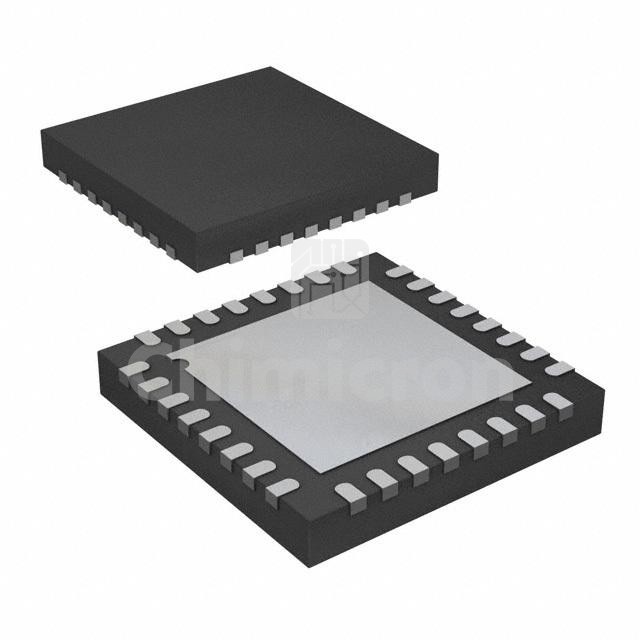

ADG5206BCPZ-RL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MUX 1 X 16:1 32LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:1575
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG5206BCPZ-RL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 1575 pieces of ADG5206BCPZ-RL7 in stock available now. Submit an inquiry for ADG5206BCPZ-RL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit16:1
Number of Circuits1
On-State Resistance (Max)160Ohm
Channel-to-Channel Matching (ΔRon)4Ohm
Voltage - Supply, Single (V+)9V ~ 40V
Voltage - Supply, Dual (V±)±9V ~ 22V
Switch Time (Ton, Toff) (Max)230ns, 185ns
-3db Bandwidth65MHz
Charge Injection0.45pC
Channel Capacitance (CS(off), CD(off))3.3pf, 62pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-76dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case32-WFQFN Exposed Pad, CSP
Supplier Device Package32-LFCSP (5x5)
