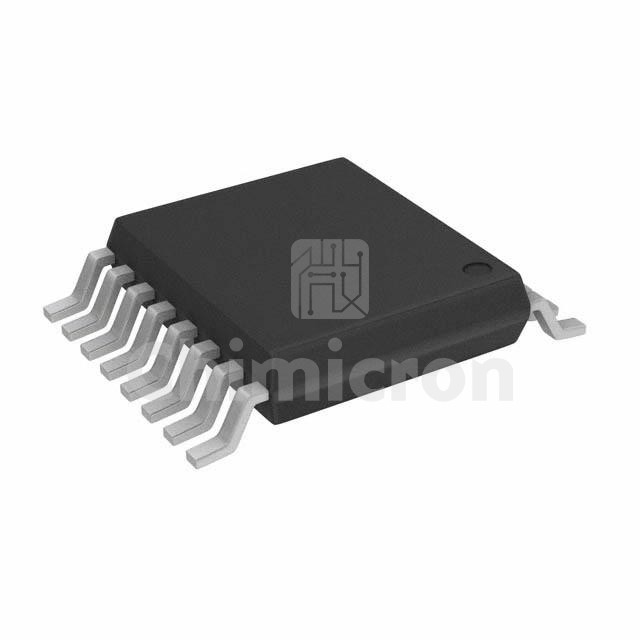

DG412EUE+
Manufacturer: Maxim Integrated
Description: IC SWITCH QUAD SPST 16TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:37959
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the DG412EUE+ Maxim Integrated at chimicron.com. We have 37959 pieces of DG412EUE+ in stock available now. Submit an inquiry for DG412EUE+ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch CircuitSPST - NO
Multiplexer/Demultiplexer Circuit1:1
Number of Circuits4
On-State Resistance (Max)45Ohm
Channel-to-Channel Matching (ΔRon)3Ohm (Max)
Voltage - Supply, Single (V+)10V ~ 30V
Voltage - Supply, Dual (V±)±4.5V ~ 20V
Switch Time (Ton, Toff) (Max)175ns, 145ns
-3db Bandwidth-
Charge Injection5pC
Channel Capacitance (CS(off), CD(off))9pF, 9pF
Current - Leakage (IS(off)) (Max)250pA
Crosstalk-85dB @ 1MHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package16-TSSOP
