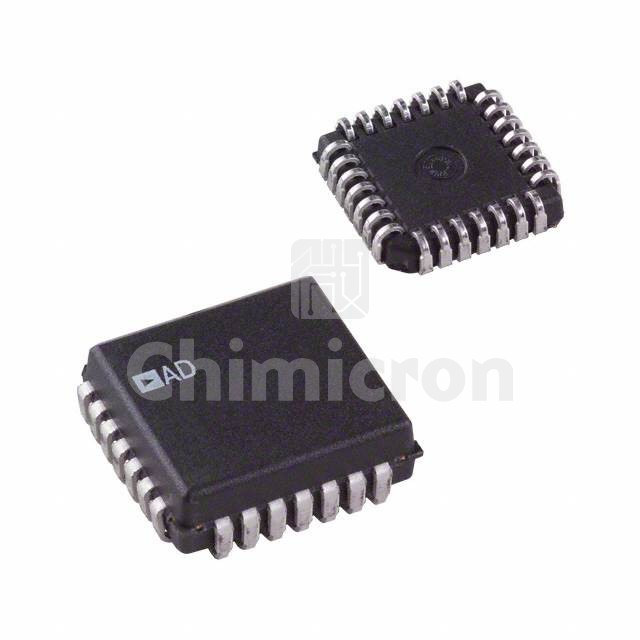

ADG406BPZ
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER 16X1 28PLCC
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:2742
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG406BPZ Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 2742 pieces of ADG406BPZ in stock available now. Submit an inquiry for ADG406BPZ or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTube
Part StatusActive
Switch Circuit-
Multiplexer/Demultiplexer Circuit16:1
Number of Circuits1
On-State Resistance (Max)80Ohm
Channel-to-Channel Matching (ΔRon)4Ohm
Voltage - Supply, Single (V+)12V
Voltage - Supply, Dual (V±)±15V
Switch Time (Ton, Toff) (Max)160ns, 150ns
-3db Bandwidth-
Charge Injection8pC
Channel Capacitance (CS(off), CD(off))5pF, 50pF
Current - Leakage (IS(off)) (Max)500pA
Crosstalk-85dB @ 100kHz
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case28-LCC (J-Lead)
Supplier Device Package28-PLCC (11.51x11.51)
