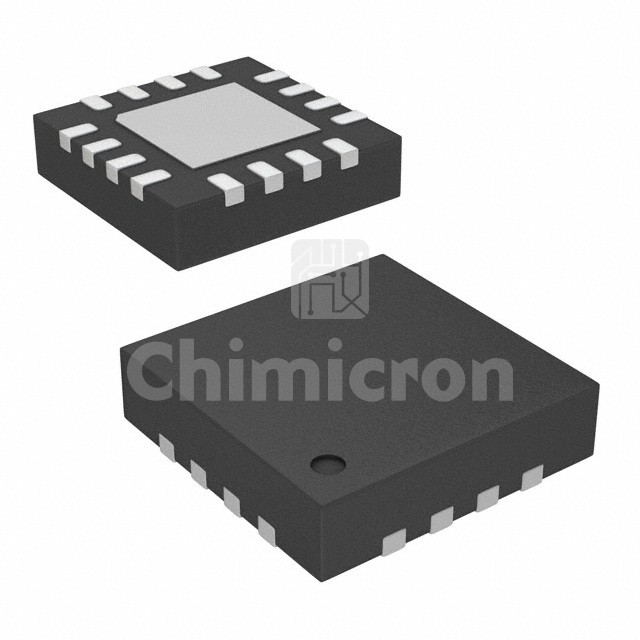

ADG1609BCPZ-REEL7
Manufacturer: Linear Technology (Analog Devices, Inc.)
Description: IC MULTIPLEXER DL 4X1 16LFCSP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:21000
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the ADG1609BCPZ-REEL7 Linear Technology (Analog Devices, Inc.) at chimicron.com. We have 21000 pieces of ADG1609BCPZ-REEL7 in stock available now. Submit an inquiry for ADG1609BCPZ-REEL7 or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSP4T
Multiplexer/Demultiplexer Circuit4:1
Number of Circuits2
On-State Resistance (Max)4.5Ohm
Channel-to-Channel Matching (ΔRon)120mOhm
Voltage - Supply, Single (V+)3.3V ~ 16V
Voltage - Supply, Dual (V±)±3.3V ~ 8V
Switch Time (Ton, Toff) (Max)94ns, 93ns
-3db Bandwidth78MHz
Charge Injection29pC
Channel Capacitance (CS(off), CD(off))19pF, 59pF
Current - Leakage (IS(off)) (Max)100pA
Crosstalk-64dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-WFQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP-WQ (3x3)
