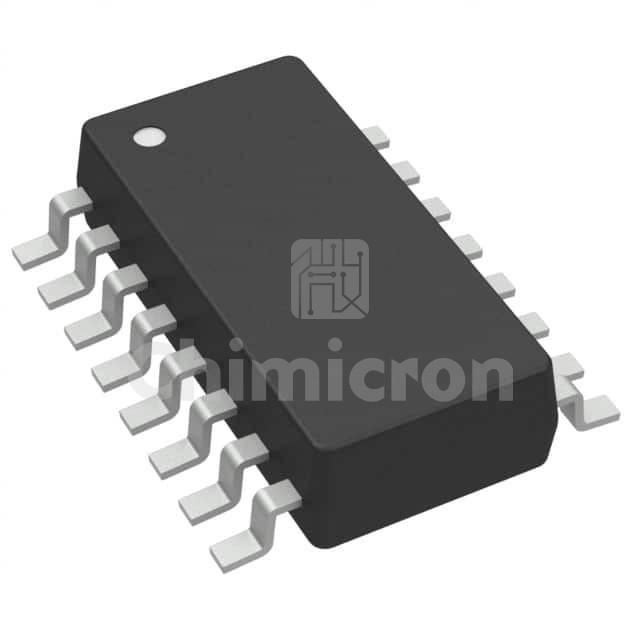

TMUX1574DYYR
Manufacturer: Texas
Description: IC SWITCH QUAD SPDT 16SOT-23
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:800
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TMUX1574DYYR Texas at chimicron.com. We have 800 pieces of TMUX1574DYYR in stock available now. Submit an inquiry for TMUX1574DYYR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits4
On-State Resistance (Max)4.5Ohm
Channel-to-Channel Matching (ΔRon)70mOhm
Voltage - Supply, Single (V+)1.5V ~ 5.5V
Voltage - Supply, Dual (V±)1.5V ~ 5.5V
Switch Time (Ton, Toff) (Max)35µs, 95ns
-3db Bandwidth2GHz
Charge Injection3.5pC
Channel Capacitance (CS(off), CD(off))3.5pF, 3.5pF
Current - Leakage (IS(off)) (Max)100nA
Crosstalk-90dB @ 100kHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / CaseSOT-23-16 Thin, SOT-23 Variant
Supplier Device Package16-SOT-23-THIN
