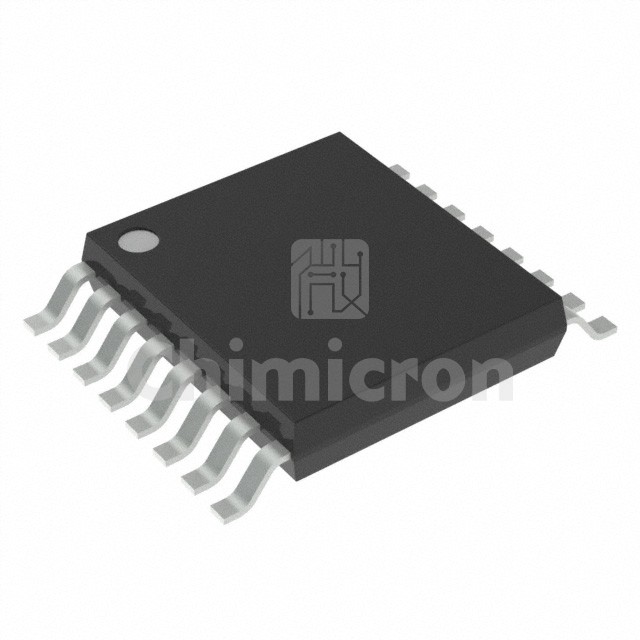

TMUX6136PWR
Manufacturer: Texas
Description: IC SWITCH SPDT DUAL 16TSSOP
Category : Integrated Circuits
Family: Interface - Analog Switches, Multiplexers, Demultiplexers
Series: -
In Stock:3150
Get Instant Quote
Product Introduction:
Chimicron is an independent distributor of electronic components. We have reliable sources of electronic components, only sell new & original products and offer 1 year warranty for our products. Buy the TMUX6136PWR Texas at chimicron.com. We have 3150 pieces of TMUX6136PWR in stock available now. Submit an inquiry for TMUX6136PWR or send an email to [email protected], we will contact you in 24 hours.
Product Details
Series-
PackageTape & Reel (TR)Cut Tape (CT)Digi-Reel®
Part StatusActive
Switch CircuitSPDT
Multiplexer/Demultiplexer Circuit2:1
Number of Circuits2
On-State Resistance (Max)135Ohm
Channel-to-Channel Matching (ΔRon)2.5Ohm
Voltage - Supply, Single (V+)10V ~ 16.5V
Voltage - Supply, Dual (V±)±5V ~ 16.5V
Switch Time (Ton, Toff) (Max)-
-3db Bandwidth670MHz
Charge Injection-0.4pC
Channel Capacitance (CS(off), CD(off))2.4pF
Current - Leakage (IS(off)) (Max)50pA
Crosstalk-105dB ~ -92dB @ 1MHz
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package16-TSSOP
